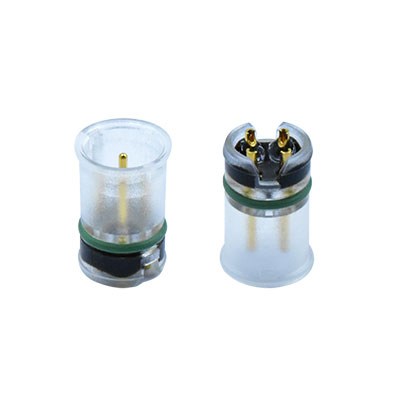

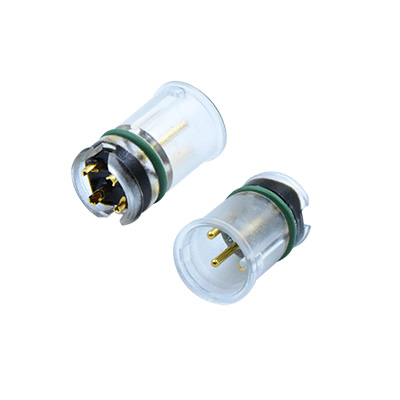

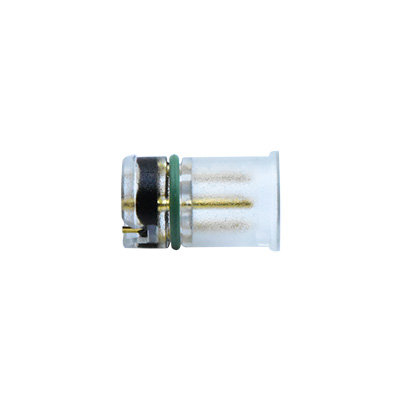

M12 4Pins Male Black PBT+GF Custom Made -M12 Steck verbinder-Shenzhen Signal Electronics Co., Ltd

Zurück zur Liste

Zurück zur Liste Download 3D-Vorschau

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	solder	-	-	-	＞500 mating cycles	+85℃	-25℃

Rated voltage	Rated current	Contact resistance	Insulation resistance
250V	4A	≤10mΩ	＞100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au

The 3D feature is not yet available, so stay tuned!
