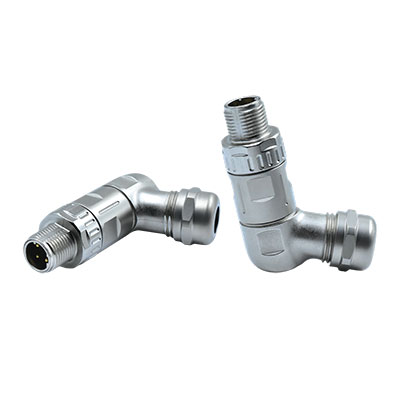

M12 D-Coding 4Pins Male Right-Angle Metal Assembly Connector (Crimp Contacts, Zinc Alloy Version)-M12 Steck verbinder-Shenzhen Signal Electronics Co., Ltd

Zurück zur Liste

Zurück zur Liste Download 3D-Vorschau

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	Crimp	-	-	IP67	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
250V	4A	≤10mΩ	＞100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
