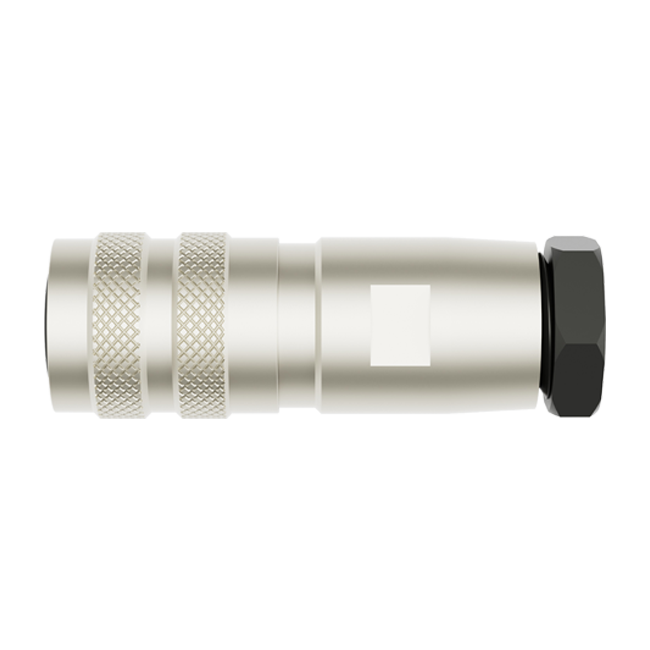

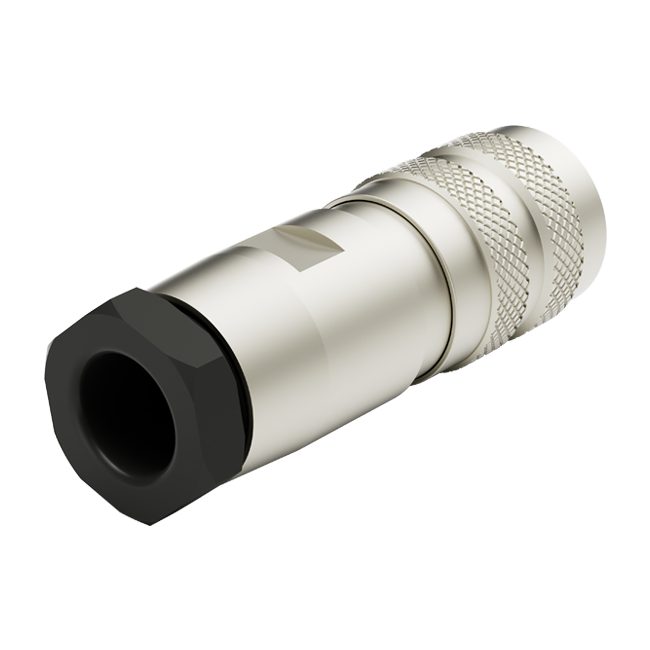

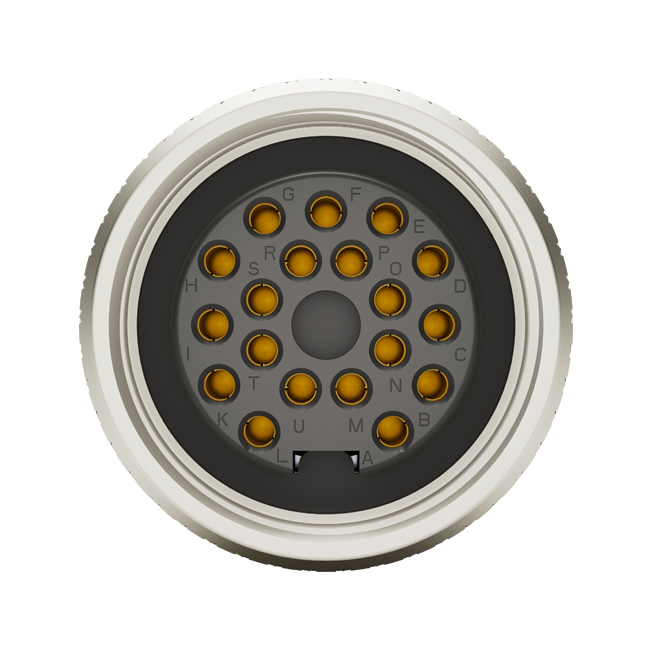

M16 19pins female assembly connector( solder ,metal)-M16 Steck verbinder-Shenzhen Signal Electronics Co., Ltd

Zurück zur Liste

Zurück zur Liste Download 3D-Vorschau

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
19	solder	-	-	IP67 / IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
32V	1A	≤3mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
