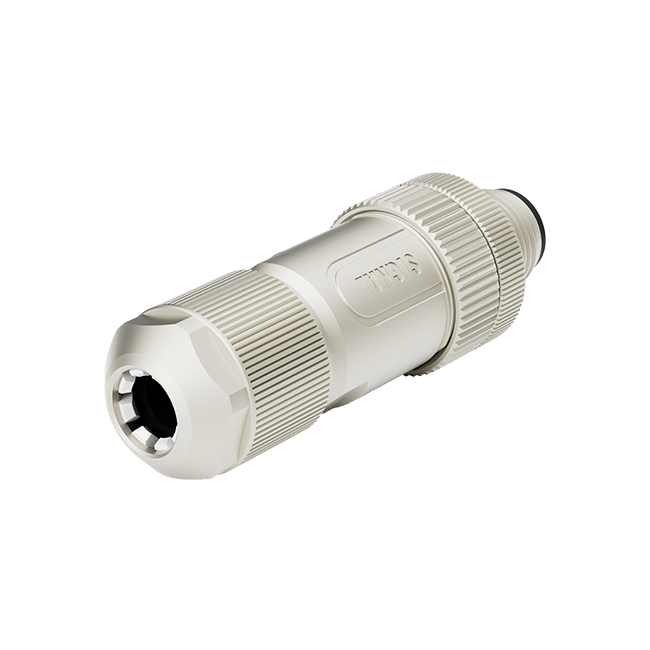

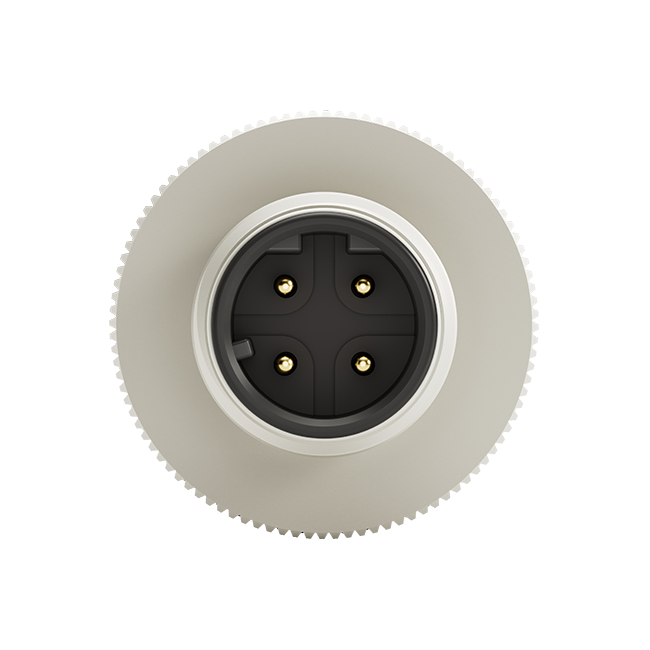

M12 D-Coding 4 Pins Male Assembly Connector-M12 Steck verbinder-Shenzhen Signal Electronics Co., Ltd

Order No.: 120404-01-007S

Product No.: N / A

Zurück zur Liste

Zurück zur Liste Download 3D-Vorschau

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
4	screw	-	-	IP67 / IP68	＞100 mating cycles	+80℃	-40℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
250V	4A	≤3mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
