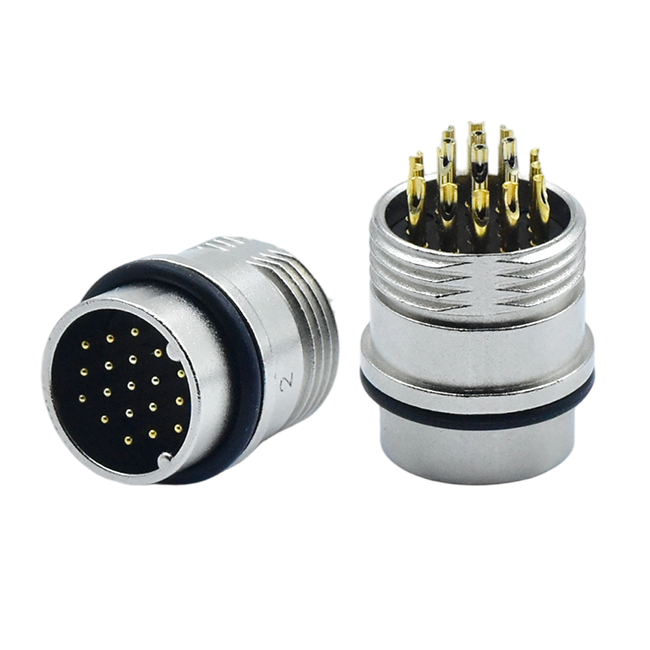

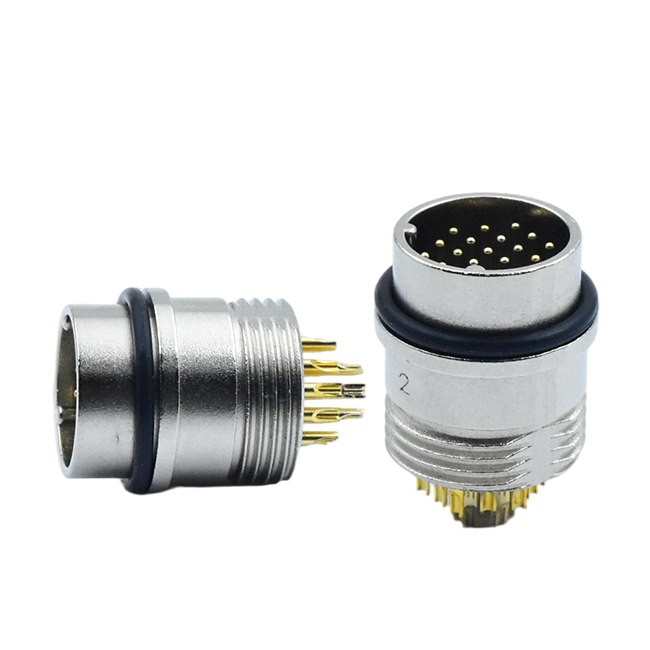

M15 19Pins Male Connector With Solder Wire Forming-M15 Steck verbinder-Shenzhen Signal Electronics Co., Ltd

Zurück zur Liste

Zurück zur Liste Download 3D-Vorschau

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
19	solder	-	-	-	＞100 mating cycles	+80℃	-25℃

Rated voltage	Rated current	Contact resistance	Insulation resistance
30V	1A	≤10mΩ	>100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
