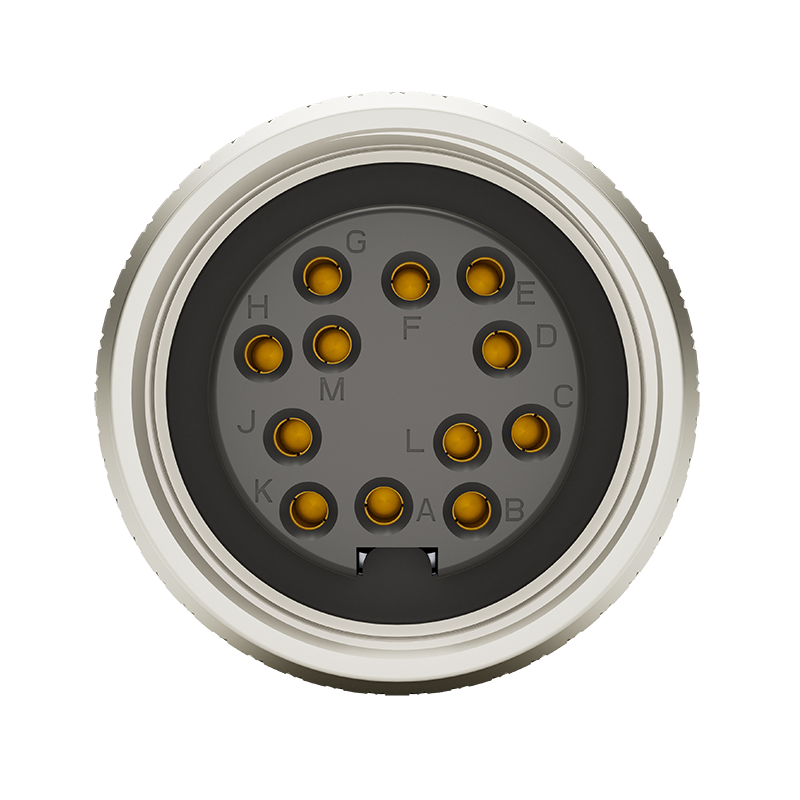

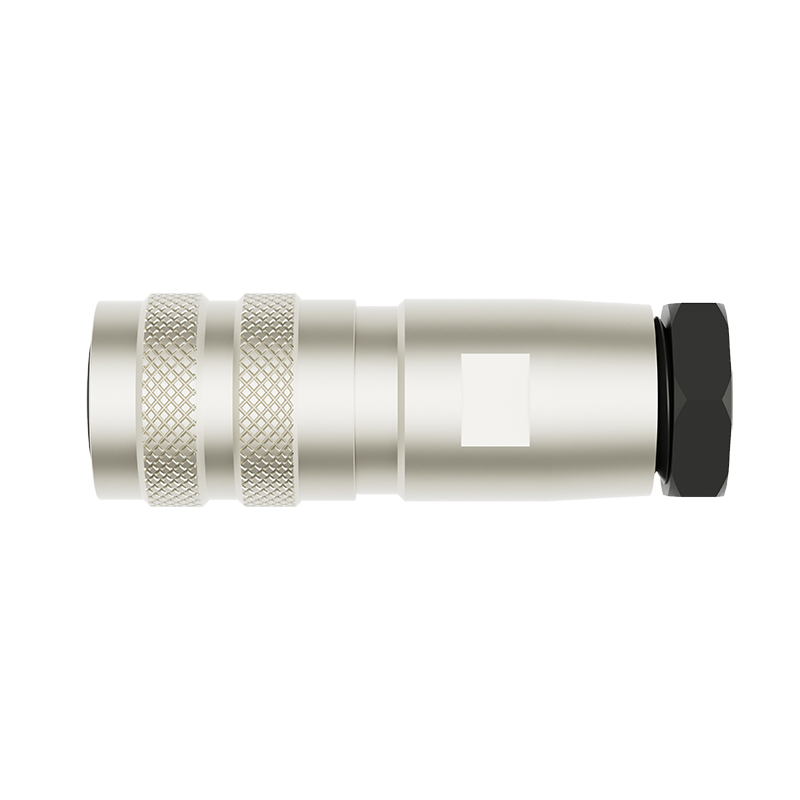

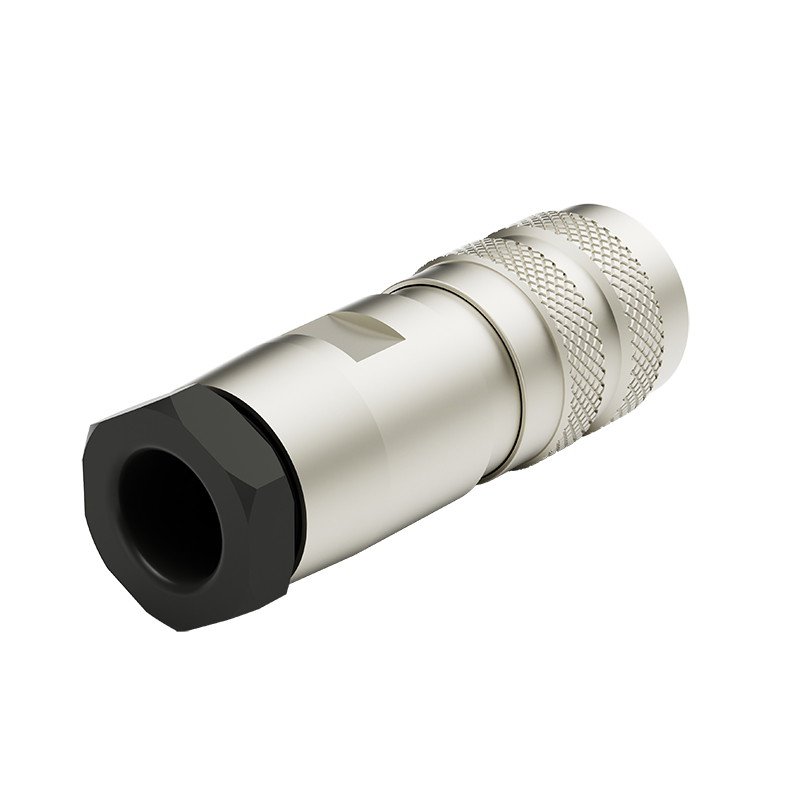

M16 12 pins female straight end metal assembled-M16 Steck verbinder-Shenzhen Signal Electronics Co., Ltd

Order No.: 160012-02-001

Product No.: N / A

Zurück zur Liste

Zurück zur Liste Download 3D-Vorschau

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
12	solder	max 0.25	max 24	IP67 / IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
32V	1A	≤3mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
