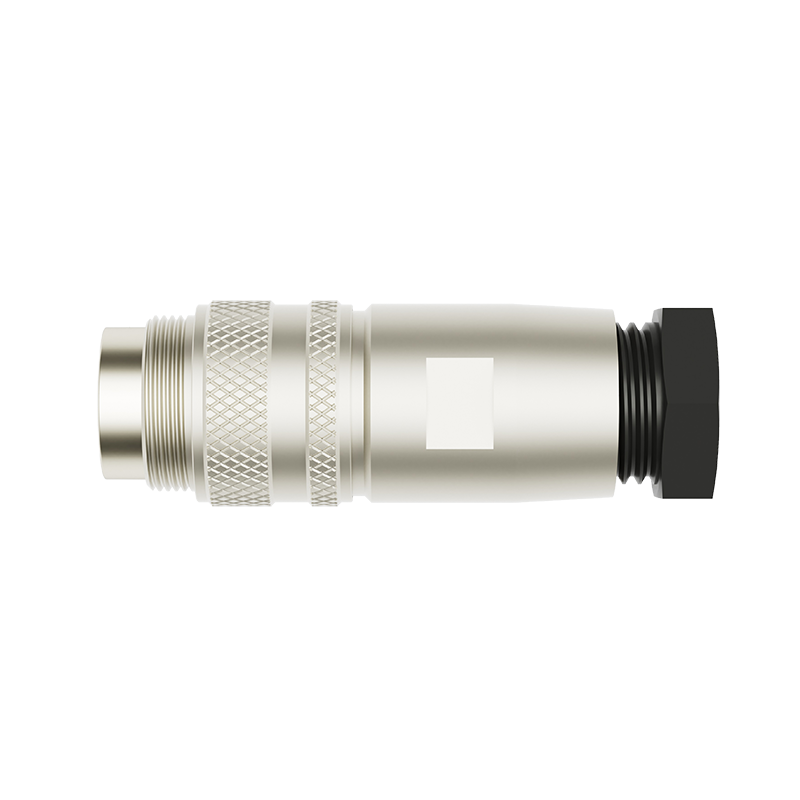

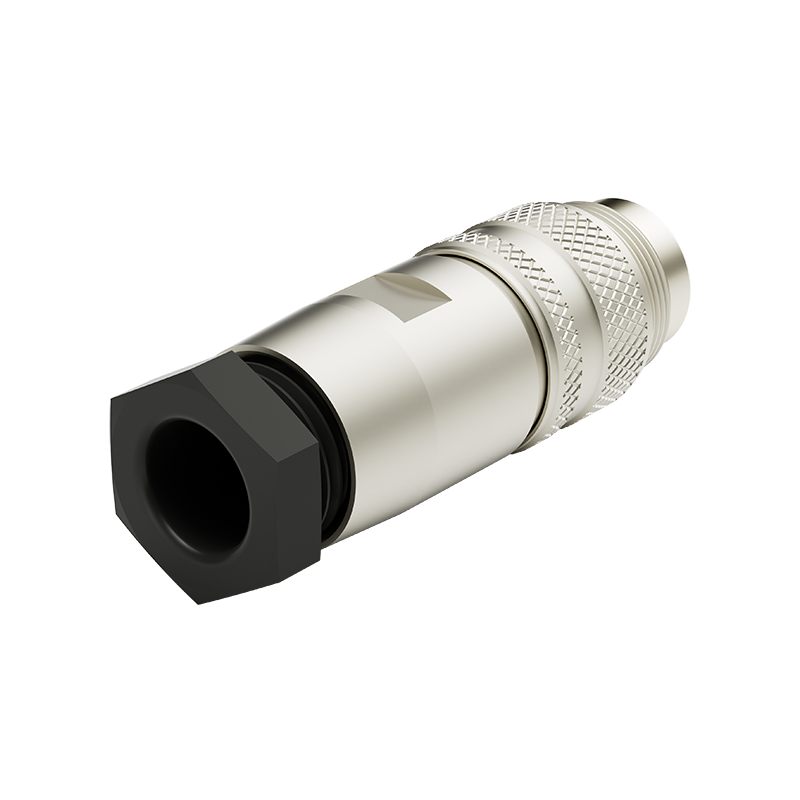

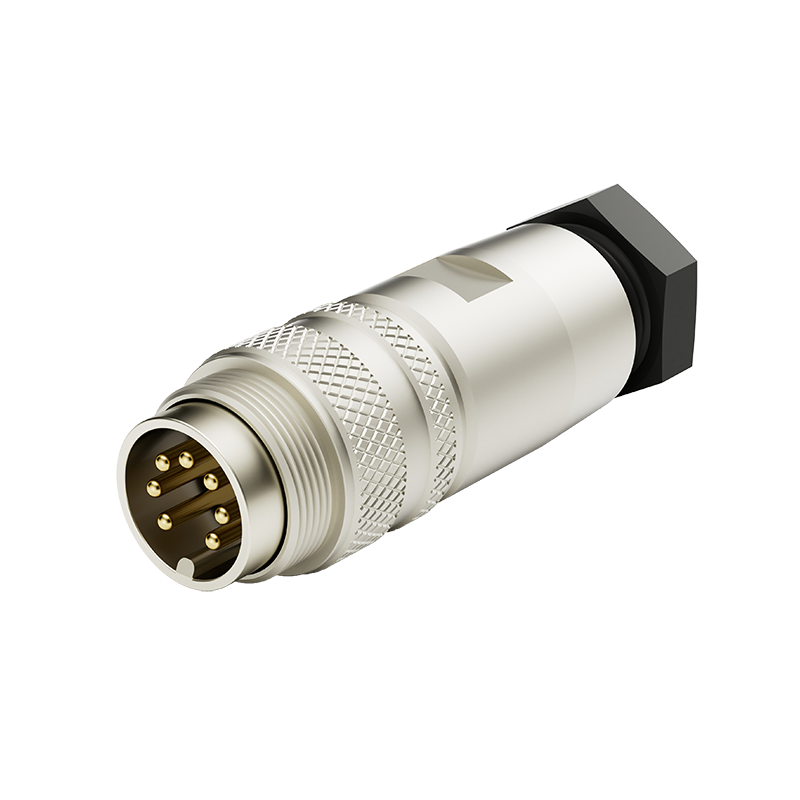

M16 7 pins(DIN) male straight end metal assembled connector-M16 Steck verbinder-Shenzhen Signal Electronics Co., Ltd

Order No.: 160007-01-002

Product No.: N / A

Zurück zur Liste

Zurück zur Liste Download 3D-Vorschau

Contacts	Termination	Wire gauge in mm²	Wire gauge in AWG	Shell protection	Mechanical operation	Upper temperature	Lower temperture
7	solder	max 0.25	max 20	IP67 / IP68	＞100 mating cycles	+85℃	-25℃

Rated voltage	Rated current(40℃)	Contact resistance	Insulation resistance
32V	5A	≤5mΩ	≥100MΩ

Pin contact	Socket contact	Contact plating
CuZn	CuSn	Au
